Diesel Forklift ｜ Warehouse Equipment ︱ Aceally 2-3 Ton

Main Features

1. Electro-hydraulic reversing handle
  Adopt electro-hydraulic reversing handle to ensure easy operation, reducing the labor intensity effectively;
2. Instrument panel & meter display
  Fix the instrument panel with concise meter on right side, ensure the driver read and understand easily;
3. New design overhead guard
  Heightening overhead guard with big circular arc structure of front legs enlarge the operating space and expand visual field, reducing the driving fatigue;
4. New type wide view stable mast
  Original imported German U-steel as optional together with advanced welding process and technology make the mast more stable and duarble;
5. Security system
  Equipped with OPS system as optional. When the operator leaves the seat during operation, the system will cut off the driving power to avoid accident happens.

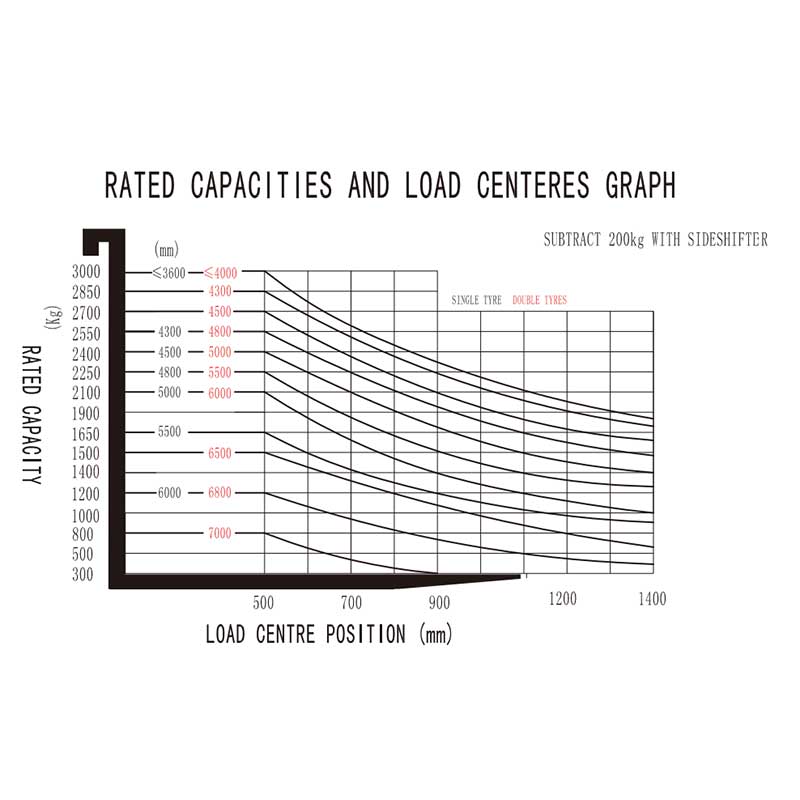

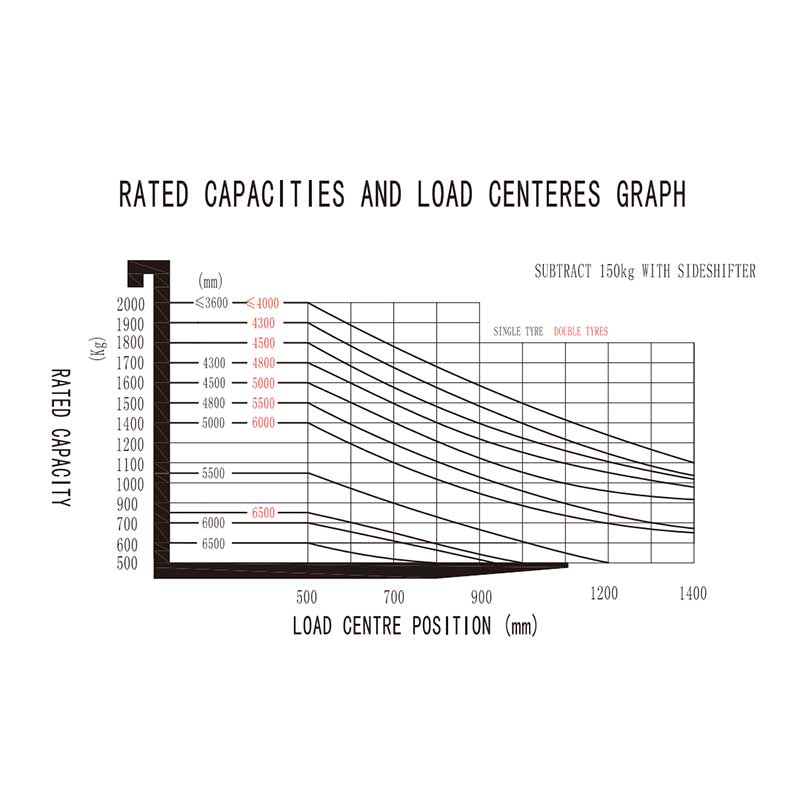

Rated Capacity and Load Centers Graph

Technical Data

General
Manufacture
Model				CPC20	CPCD20	CPQ20	CPQD20
Power type				Diesel	Diesel	Gasoline	Gasoline
Rated capacity			kg	2000
Load center			mm	500
Characteristics & Dimensions
Lift height			mm	3000
Free lift height			mm	120
Fork size		LxWxT	mm	1070x120x40
Mast tilt range		F/R	deg	6/12
Fork overhang (wheel center to fork face)			mm	481
Rear overhang			mm	430
Overall dimensions	Length to face of fork		mm	2510
	Overall width		mm	1150
	Mast lowered height		mm	1995
	Mast extended height		mm	4200
	Overhead guard height		mm	2160
Turning radius(outside)			mm	2170
Performance
Speed	Travel (No load)		Km/h	8/20
	Lifting (Full load)		mm/sec	400
	Lowering (Full load)		mm/sec	400
Max. Drawbar Pull (Full load)			N	14000
Max. Gradeability (Full load)			%	20
Chassis
Tyres		Front	mm	700-12-12PR
		Rear	mm	600-9-10PR
Tread		Front	mm	970
		Rear	mm	970
Wheelbase			mm	1600
Gound clearance	Lowest		mm	135/120
	Wheelbase center		mm	160/145
Weight
Self weight			Kg	3580
Weight distribution	Full load	Front	Kg	4856
		Rear	Kg	724
	No load	Front	Kg	1428
		Rear	Kg	2152
Power & transmission
Battery	Voltage/Capacity(20HR)		V/Ah	12/80 12/60	12/80 12/60	12/60 12/80	12/60 12/80
Engine	Model			C490BPG-200 S4S C240	C490BPG-200 S4S C240	K25 491	K25 491
	Manufacture			CHINA Misubishi ISUZU	CHINA Misubishi ISUZU	Nissan CHINA	Nissan CHINA
	Rated output/r.p.m		kw	40/2650   36.8/2650 35.3/2250 34.5/2500	40/2650    36.8/2650 25.3/2250 34.5/2500	37.4/2300 47/2600	37.4/2300 47/2600
	Rated torque/r.p.m		N.m	165/1500-1800 156/1700-1900 166/1700 139/1800	165/1500-1800 156/1700-1900 166/1700 139/1800	176.5/1600 176.7*2200	176.5/1600 176.7/2200
	No.of cylinder			4
	Bore*Stroke		mm	90x105 94x120 86x102	90x105 94x120 86x102	89x100 91x86	89x100 91x86
	Displacement		cc	2670 3331 2369	2670 3331 2369	2488 2237	2488 2237
	Emission standard			CHN Ⅱ EUR Ⅲ /	CHN Ⅱ EUR Ⅲ /	/	/
	Fuel tank capacity		L	60
Transmissions	Manufacture			CHINA
	Type			Mechanical	Powershift (Manual)	Mechanical	Powershift (Manual)
	Stage	FWD/RVS		2/2	1/1	2/2	1/1
Operating pressure		For Attachements	Mpa	17.5

1. Special lifting height available (2-stage mase: 2.5m, 2.7m, 3.0m, 3.3m, 3.6m, 3.7m, 4m, 4.3m, 4.5m, 5m. Full free duplex mast 3.0m, 3.3m, 3.5m, 3.6m. 3-stage mast: 4.3m, 4.5m, 4.8m, 5m, 5.5m, 6m, 6.5m, 7.0m)

2. Attachment available.

3. The specification in the table are for standard models only. For further information please contact us.

4. Specification are subject to change without notice.

General
Manufacture
Model				CPC25	CPCD25	CPQ25	CPQD25
Power type				Diesel	Diesel	Gasoline	Gasoline
Rated capacity			kg	2500
Load center			mm	500
Characteristics & Dimensions
Lift height			mm	3000
Free lift height			mm	120
Fork size		LxWxT	mm	1070x120x40
Mast tilt range		F/R	deg	6/12
Fork overhang (wheel center to fork face)			mm	481
Rear overhang			mm	500
Overall dimensions	Length to face of fork		mm	2580
	Overall width		mm	1150
	Mast lowered height		mm	1995
	Mast extended height		mm	4200
	Overhead guard height		mm	2160
Turning radius(outside)			mm	2240
Performance
Speed	Travel (No load)		Km/h	8/20	20	20	20
	Lifting (Full load)		mm/sec	360
	Lowering (Full load)		mm/sec	400
Max. Drawbar Pull (Full load)			N	14500
Max. Gradeability (Full load)			%	20
Chassis
Tyres		Front	mm	700-12-12PR
		Rear	mm	600-9-10PR
Tread		Front	mm	970
		Rear	mm	970
Wheelbase			mm	1600
Gound clearance	Lowest		mm	135/120
	Wheelbase center		mm	160/145
Weight
Self weight			Kg	3920
Weight distribution	Full load	Front	Kg	5588
		Rear	Kg	832
	No load	Front	Kg	1560
		Rear	Kg	2360
Power & transmission
Battery	Voltage/Capacity(20HR)		V/Ah	12/80	12/80 12/60	12/60 12/80	12/60 12/80
Engine	Model			C490BPG-200 C490BPG-25 S4S C240	C490BPG-200 C490BPG-25 S4S C240	K25 491	K25 491
	Manufacture			CHINA Misubishi ISUZU	CHINA Misubishi ISUZU	Nissan CHINA	Nissan CHINA
	Rated output/r.p.m		kw	40/2650 36.8/2650 35.3/2250 34.5/2500	40/2650 36.8/2650 35.3/2250 34.5/2500	37.4/2300 47/2600	37.4/2300 47/2600
	Rated torque/r.p.m		N.m	165/1500-1800 156/1700-1900 166/1700 139/1800	165/1500-1800 156/1700-1900 166/1700 139/1800	176.5/1600 176.7*2200	176.5/1600 176.7*2200
	No.of cylinder			4
	Bore*Stroke		mm	90x105 94x120 86x102	90x105 94x120 86x102	89x100 91x86	89x100 91x86
	Displacement		cc	2670 3331 2369	2670 3331 2369	2488 2237	2488 2237
	Emission standard			CHN Ⅱ EUR Ⅲ /	CHN Ⅱ EUR Ⅲ /	/	/
	Fuel tank capacity		L	60
Transmissions	Manufacture			CHINA
	Type			Mechanical	Powershift (Manual)	Mechanical	Powershift (Manual)
	Stage	FWD/RVS		2/2	1/1	2/2	1/1
Operating pressure		For Attachements	Mpa	17.5

1. Special lifting height available (2-stage mase: 2.5m, 2.7m, 3.0m, 3.3m, 3.6m, 3.7m, 4m, 4.3m, 4.5m, 5m. Full free duplex mast 3.0m, 3.3m, 3.5m, 3.6m. 3-stage mast: 4.3m, 4.5m, 4.8m, 5m, 5.5m, 6m, 6.5m, 7.0m)

2. Attachment available.

3. The specification in the table are for standard models only. For further information please contact us.

4. Specification are subject to change without notice.
