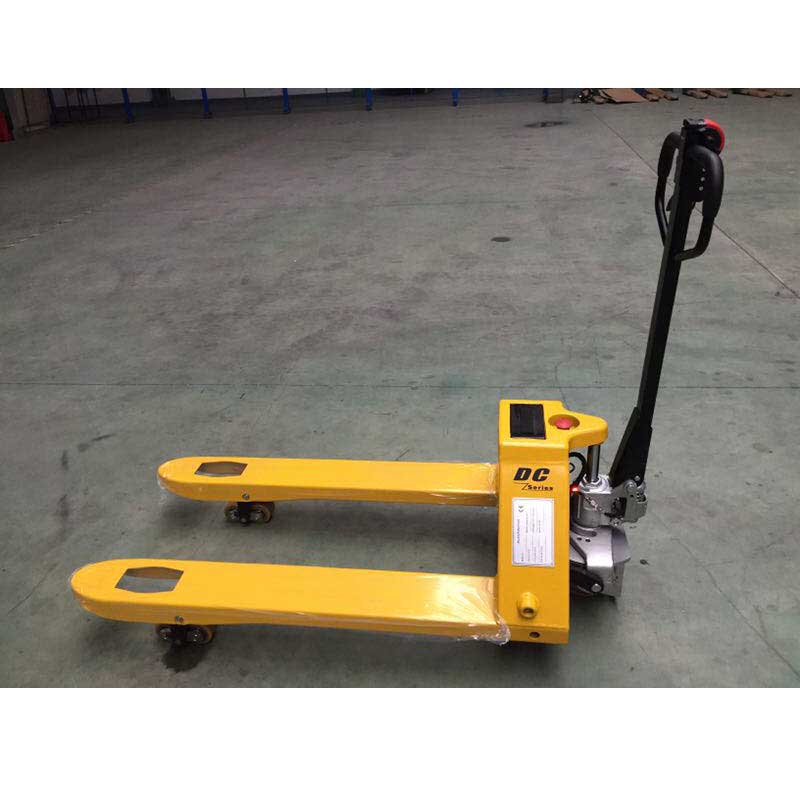

1.5T Electric Pallet Truck Jack ELEP-15A

1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A
1.5T Electric Pallet Truck Jack ELEP-15A1.5T Electric Pallet Truck Jack ELEP-15A1.5T Electric Pallet Truck Jack ELEP-15A1.5T Electric Pallet Truck Jack ELEP-15A1.5T Electric Pallet Truck Jack ELEP-15A

Loading capacity:1500kg

Operating type: Walkie

Wheel material: PU

DESCRIPTION
FAQ



Advantages



Configuration and performance


  • Forklift for revisible pallets;
  • Separately excited motor, strong climbing ability;
  • Battery oppen designm easy to replacement;
  • Built-in charger
  • Sealed batteries free of maintenance, safe operation and no pollution;
  • Automatic lifitng limit, safety, energy saving;
  • Emergency reversing device and Emergency brake switch
  • Low noise, low energy consumption, Evey day only 2kWh.







Draft





Technical Data

Feature
Manufacturer Aceally
Model designation ELEP-15A
Operator type Walkie
Load capacity Q (kg) 1500
Load center C (mm) 600
Wheelbase Y (mm) 1170/1240
 Weights
Service weight (Incl. battery) kg 130
 Wheels, Chassis
Tyre type PU/ PU
Tyre size, driving wheel Ф150x70
Tyre size, loading wheel 2xΦ80x60
 Dimensions
Lift height H2 (mm) 200
Height of tiller arm in operatin H4 (mm) 785/1250mm
Fork height, lowered H3 (mm) 85
Overall length L1 (mm) 1550/1620
Overall width B (mm) 540/680
Fork dimensions S / E (mm) 50mm/160mm
Ground clearance, center of wheelbase H5 (mm) 35
Aisle width, 1000×1200 pallet crossways Ast (mm) 1980
Aisle width, 800×1200 pallet lengthways Ast (mm) 1860
Outer turning radius Wa (mm) 1320mm/1390mm
 Performance
Travel speed, laden/ unladen km/ h 4/ 4.5
Maximum gradeability, laden/ unladen  % 3/ 5
Service brake Electromagnetic
 Drive
Drive motor rating  kW 0.45
Lift motor rating  kW N/A
Battery voltage/ rated capacity  V/ Ah 24/ 20
Battery weight kg 4.82
Battery type Lithium Battery
 Others
Type of drive control DC
Manufacturer UK PG

     *Details of specifications and equipment are based on information available at time of printing and may change without notice.






    • Do you offer customized products?
      we do custom products and projects.

      If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a  team whomanufacturer.
    • I don' have drawing or picture available for the custom products, could you design it for me?
      Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
