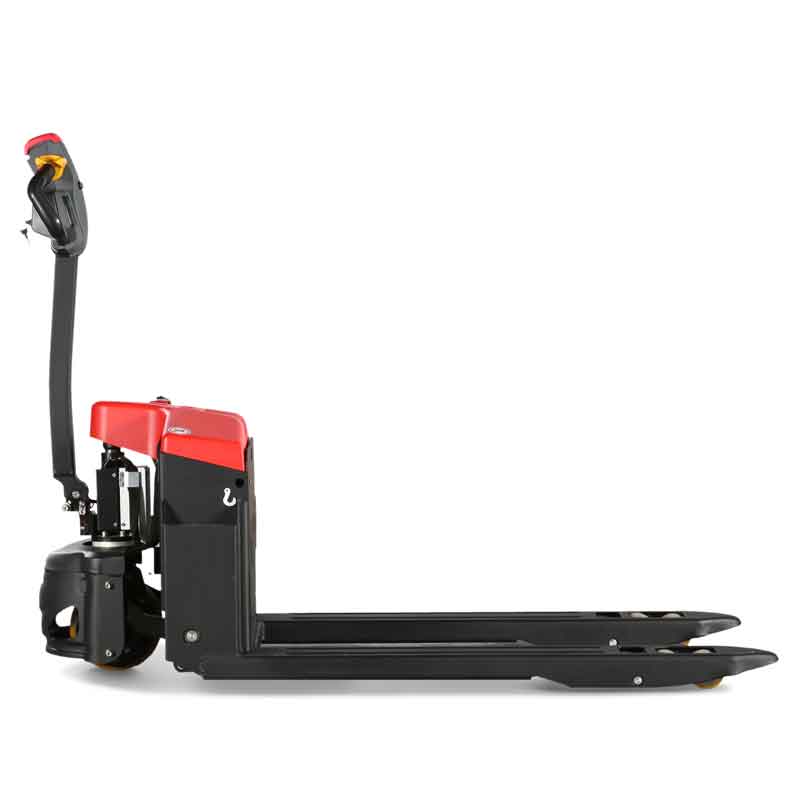

1.5T Electric Pallet Truck ELEP-15

Loading capacity:1500kg

Operating type: Walkie

Wheel material: PU

ADD TO FAVORITES INQUIRY NOW

DESCRIPTION

FAQ

Feature
Model		ELEP-15
Configuration No.
Load capacity	kg	1500
Load center	mm	600
Wheel base	mm	1301
Operating type		Walkie
Wheels
Wheels type		PU
Wheel quantity Driving wheel/Balance wheel /Bearing wheel		1/0/4
Driving wheel size	mm	￠252*67
Balance wheel size	mm	￠84×70 Double wheels
Bearing wheel size	mm	-
Dimension
Min.fork lowered height	mm	85
Max.fork lifting height	mm	205
Max.lifting height	mm	120
Outside width between forks	mm	550/600/650/685
Inside width between forks		230/280/330/365
Fork length	mm	1150/1200
Fork width	mm	160
Fork thickness	mm	55
Overall length	mm	1707
Overall width	mm	697
Overall height(With handle)	mm	1181
Overall height(Without handle)	mm	714
Min.Turning radius	mm	1547
Min.Aisle width for pallets 800×1200	mm	1920
Min.Aisle width for pallets 1000×1200	mm	1953
Performance
Travel speed,laden/unladen	km/h	3/3.5
Lift speed,laden/unladen	mm/s	56/60
Lowering speed,laden/unladen	mm/s	57/59
Gradeability,laden/unladen	%	5/7
Electrical configuration
Drive motor	KW	DC 0.63
Lift motor	KW	DC 0.8
Battery voltage / capacity	V/Ah	24/85
Brake		Electromagnetic / Regenerative
Controller		CURTIS
Weight
Battery weight	kg	51
Service weight with battery	kg	171

*Details of specifications and equipment are based on information available at time of printing and may change without notice.

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
