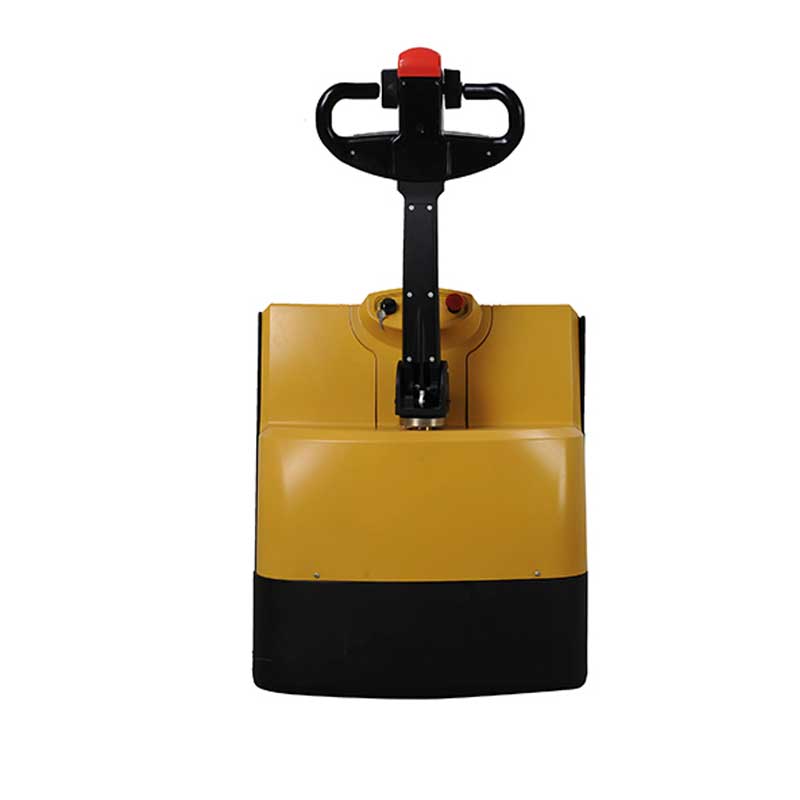

Pedestrian ELEP-20B 1.8-2.0 Ton Electric Pallet Truck

Loading capactiy: 1800-2000kg

Wheels type: PU

Options: 140Ah VRLA battery built-in charger;

Handle uproight walking function

ADD TO FAVORITES INQUIRY NOW

DESCRIPTION

FAQ

Feature
Model		ELEP-20B
Configuration No.
Load capacity	kg	2000
Load center	mm	600
Wheel base	mm	1300
Operating type		Walkie
Wheels
Wheels type		PU
Wheel quantity Driving wheel/Balance wheel /Bearing wheel		1/1/4
Driving wheel size	mm	￠228×75
Balance wheel size	mm	￠84×80 （Double wheels）
Bearing wheel size	mm	￠115×55
Dimension
Min.fork lowered height	mm	85
Max.fork lifting height	mm	200
Max.lifting height	mm	115
Overall fork width	mm	550/600/685
Fork length	mm	1150/1200
Fork width	mm	165
Fork thickness	mm	55
Overall length	mm	1650
Overall width	mm	725
Overall height(With handle)	mm	1380
Overall height(Without handle)	mm	890
Min.Turning radius	mm	1450
Min.Aisle width for pallets 800×1200	mm	1866
Min.Aisle width for pallets 1000×1200	mm	1921
Performance
Travel speed,laden/unladen	km/h	3.5/4.0
Lift speed,laden/unladen	mm/s	20/25
Lowering speed,laden/unladen	mm/s	40/30
Gradeability,laden/unladen	%	5/7
Electrical configuration
Drive motor	KW	AC 0.93
Lift motor	KW	DC1.2
Steering motor	KW	/
Battery voltage / capacity	V/Ah	24/210
Brake		Electromagnetic / Regenerative
Controller		ZAPI AC0
Weight
Battery weight	kg	190
Service weight with battery	kg	585

*Details of specifications and equipment are based on information available at time of printing and may change without notice.

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
