Loading capactiy: 2000/2500/2800/3000kg
Wheels type: PU
Options: 140Ah VRLA battery built-in charger;
Handle uproight walking function
![]() |
![]() |
![]() |
![]() |
Feature | ||
Model | ELEP-20/ELEP-25/ELEP-30 | |
Configuration No. | ||
Load capacity | kg | 2000/2500/2800/3000 |
Load center | mm | 600 |
Wheel base | mm | 1493 |
Operating type | Ride on | |
Wheels | ||
Wheels type | PU | |
Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/2/4 | |
Driving wheel size | mm | ¢248×75 |
Balance wheel size | mm | ¢84×80 Double wheels |
Bearing wheel size | mm | ¢115x55 |

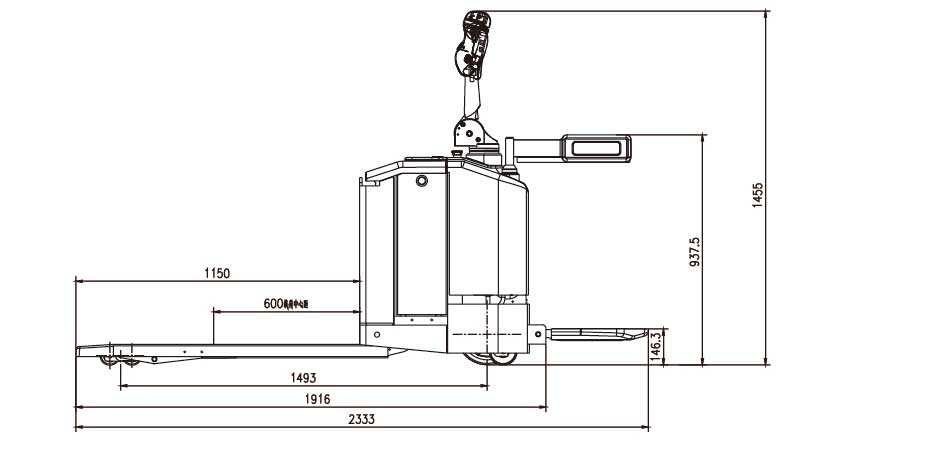

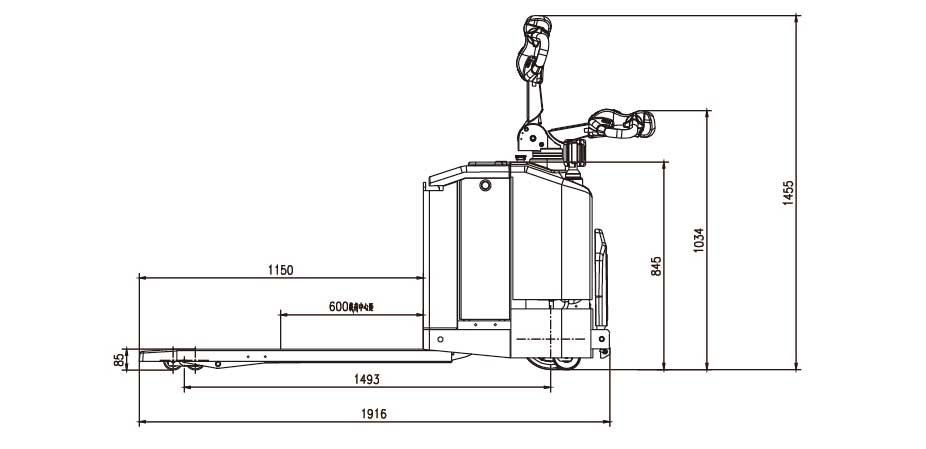

Dimension | ||
Min.fork lowered height | mm | 85 |
Max.fork lifting height | mm | 205 |
Max.lifting height | mm | 120 |
Overall fork width | mm | 550/600/650/685 |
Inside width between forks | mm | 210/260/310/345 |
Fork length | mm | 1150/1200 |
Fork width | mm | 170 |
Fork thickness | mm | 75 |
Overall length | mm | 1916/2333 |
Overall width | mm | 790 |
Overall height(With handle) | mm | 1455 |
Overall height(Without handle) | mm | 845 |

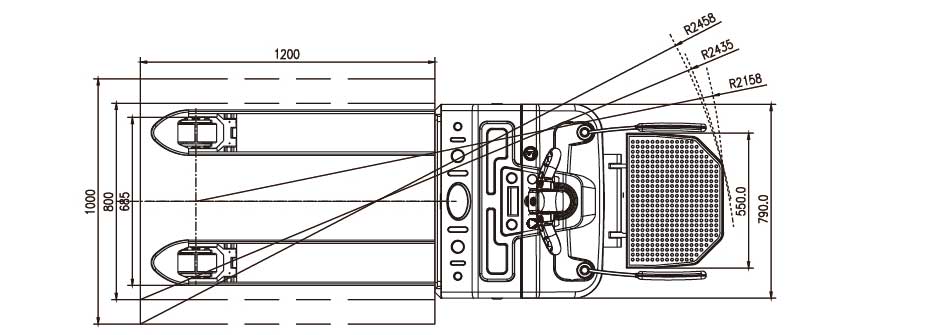

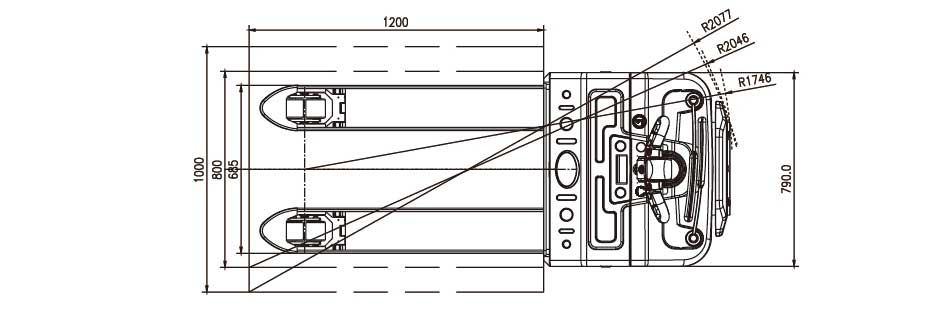

Min.Turning radius | mm | 1746/2158 |
Min.Aisle width for pallets 800×1200 | mm | 2046/2435 |
Min.Aisle width for pallets 1000×1200 | mm | 2077/2458 |
Performance | ||
Travel speed,laden/unladen | km/h | 5/5 |
Lift speed,laden/unladen | mm/s | 30/35 |
Lowering speed,laden/unladen | mm/s | 40/35 |
Gradeability,laden/unladen | % | 5/7 |
Electrical configuration | ||
Drive motor | KW | AC 1.5 |
Lift motor | KW | DC 1.2 |
Steering motor | KW | DC 0.15 |
Battery voltage / capacity | V/Ah | 24/270 |
Brake | Electromagnetic / Regenerative | |
Controller | CURTIS | |
Weight | ||
Battery weight | kg | 245 |
Service weight with battery | kg | 840 |
