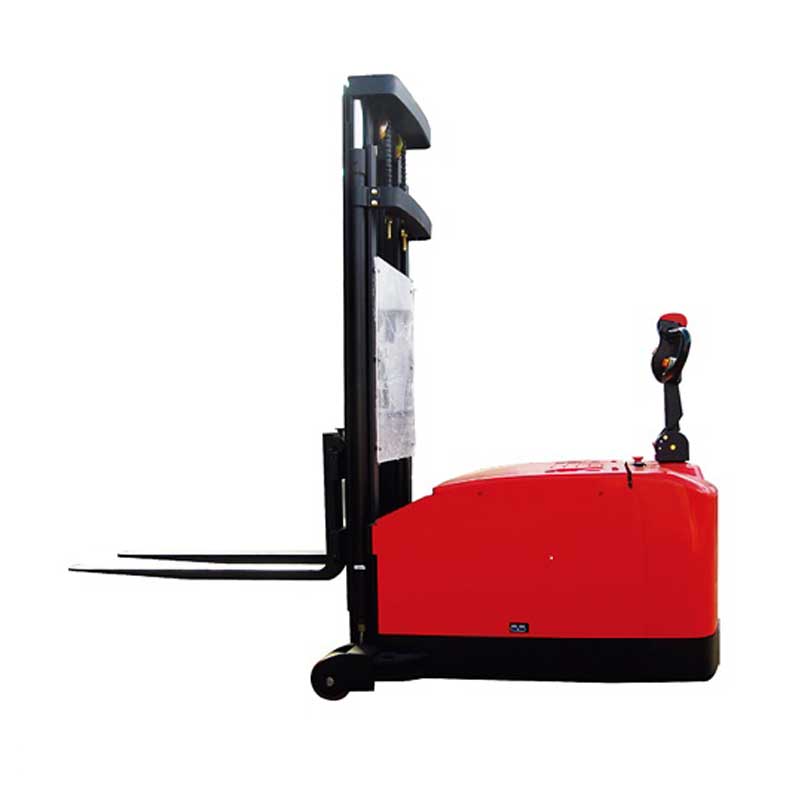

1.2 Ton Counterbalanced Electric Stacker ELES-12C/12CF

AC｜EPS

Free-maintained battery

Options fork tilt device

Counter- balanced electric stacker

ADD TO FAVORITES INQUIRY NOW

DESCRIPTION

FAQ

Fork over typed stacker
Type	Lift height( mm)	Mast tyep	Outside width between legs(mm)	Inside width between legs(mm)
ELES-12C	1400/2000/2500/3000/3300/3600	Standard 2-STAGE	1170/1320/1470/1650	970/1120/1270/1450
ELES-12CF	2500/3000/3300	Full free 2-STAGE	1170/1320/1470/1650	970/1120/1270/1450

Feature
Model		ELES-12C	ELES-12CF
Configuration No.
Type		Counterbalanced
Mast type		Standard 2-stage	Full free 2-stage
Load capacity	kg	1200	1200
Load center	mm	500
Wheel base	mm	1179
Operating type		Walkie/Stand on
Wheels
Wheels type		PU
Wheel quantity driving wheel/ balance wheel/ bearing wheel		1/0/2

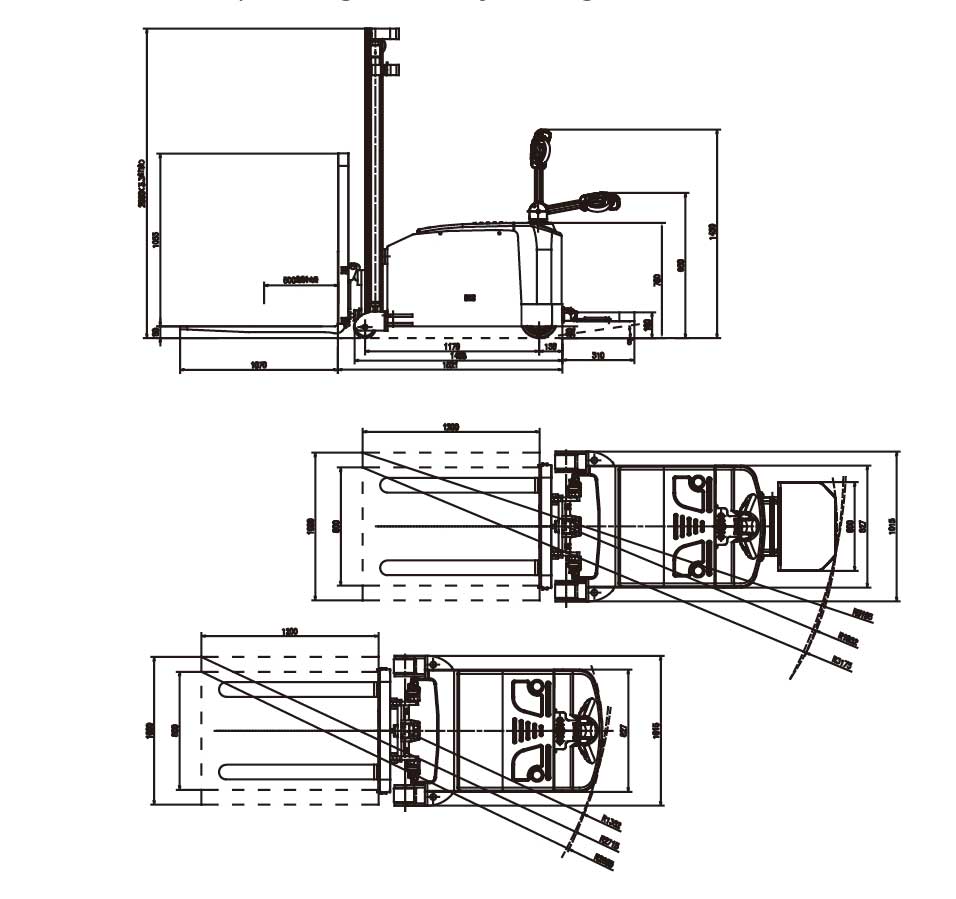

Dimension
Standard lift height	mm	1400/2000/2500/3000/3300/3600	2500/3000/3300
Lowered fork height	mm	55
Fork size(length/width/thickness)	mm	1070/100/40
Overall length	mm	2502/3012
Overall width	mm	1015
Max. Extend height	mm	2400/3000/3500/4000/4300/4600	3100/3600/3900
Mast Lowered height	mm	1230/1580/1780/2030/2130/2330	1830/2080/2180
Min. Turning radius	mm	1352/1852
Min. Aisle width for pallets 800x1200	mm	2685/3175
Min. Aisle width for pallest 1000x1200	mm	2715/3195
Min. Ground clearance	mm	80
Performance
Travel speed, laden/ unladed	km/h	5/5
Lift speed, laden/ unladed	mm/s	130/180
Lowering speed, laden/ unladed	mm/s	100/200	100/150
Gradeability, laden/ unladed	%	5/7
Electrical configuration
Drive motor/ lift motor/ steering motor	kW	AC 1.5/DC 3/DC 0.15
Battery voltage	V	24
Battery capacity	Ah	270
Brake		Electromagnetic/Regenerative
Controller		CURTIS
Weight
Battery weight	kg	245
Service weight with battery	kg	1800	1930

*Details of specifications and equipment are based on information available at time of printing and may change without notice.

Do you offer customized products?

we do custom products and projects.

If you are unable to findyour exact product within our wide variety please call or sales team to see ifthey are able to source the product you require. We also have a team whomanufacturer.
I don' have drawing or picture available for the custom products, could you design it for me?

Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environmen.
